Application

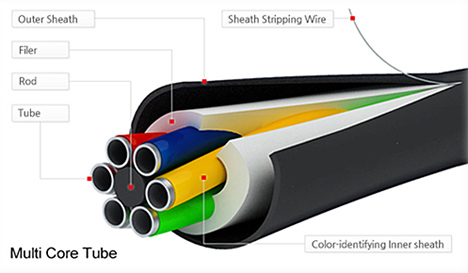

- Marine multi-tube, UTP cable filler, optical cable wire tube and other products to suit the customer needs.
Features
- Flexibility and flexibility resistance
- excellent machinability
-
Major physical properties and process temperature
| Test Item | UNIT | Value | Test method | ||
|---|---|---|---|---|---|
| WS-020P/2 | WS-31122FR | ||||
| Room Temp. | Tensile Strength | Mpa | 2 | 12 | ASTM D 638 |
| Elongation | % | 61 | 190 | ||
| Aging Test | Retention of T/S |
% | - | 89 | ASTM C 638 |
| Retention of E/L |
% | - | 82 | ||
| Oxygen Index | - | 29 | JIS K 6723 | ||
| Specific Gravity | - | 1.80 | 1.44 | ASTM D 792 | |
| Application | Bedding for Multi Core Tube |
Jacket for Micro tube |
|||
- Product characteristics shown above are only guidelines not the actual product specification.
- Process temperature conditions for the product may differ according to the technical spec of the machinery and processing condition.
