Non-crosslinked PVC compound (ES standard)
본문
Application

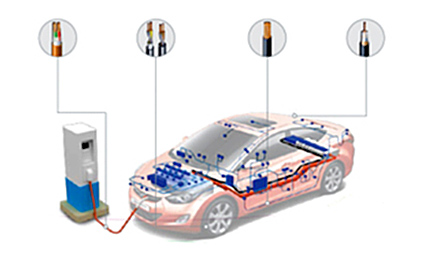

- Applied to low voltage insulator and tube used for starting, charging, lighting automobiles.
Features
- Smooth surface
- Excellent property and workability
- Free of RoHS (Pb, Cr6+, Cd, Hg, PBBs, and PBDEs) restricted heavy metal.
Major physical properties and process temperature
| Test Item | UNIT | Value | Test method | ||
|---|---|---|---|---|---|
| AV-SS/OD(A) | CORD用(OD)/A | ||||
| Room Temp. | Tensile Strength | Mpa | 19 | 15 | ASTM D 638 |
| Elongation | % | 290 | 310 | ||
| Aging Test (110℃×240hrs) |
1KV | - | PASS | - | JASO D618 |
| Aging Test (80℃×168hrs) |
Retention of T/S | Mpa | 98 | 97 | ASTM D 638 |
| Retention of E/L | % | 96 | 97 | ||
| Oil Test (50℃×20hrs) |
1KV | - | PASS | - | JASO D 618 |
| Low Temp Resistance (-40℃) |
1KV | - | PASS | - | KSC 3004 |
| Hardness | Shore A | 90 | 83 | ASTM D 2240 | |
| Specific Gravity | - | 1.41 | 1.41 | ASTM D 792 | |
| Description | ES 95℃ | ||||
| Application | AVS, CAVS, AVSS-SB, |
Vinyl Tube | |||
- Product characteristics shown above are only guidelines not the actual product specification.
- Process temperature conditions for the product may differ according to the technical spec of the machinery and processing condition.
PVC COMPOUND
| Grade | Workable Temperature | HYUNDAI | KIA | GM | Renault samsung | NISSAN | FORD |
|---|---|---|---|---|---|---|---|
| T1 | 75℃ | AV-SS/OD(A), CORD(OD)/A | T1 | ||||
| T2 | 100℃ | AV-X, T2 FLRY | T2 | ||||
| T3 | 125℃ | T3 | |||||
| T4 | 150℃ | ||||||
